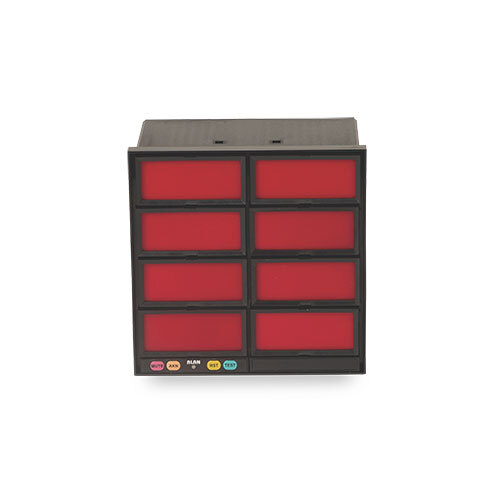

8 Way Alarm Annunciator MP that we are offering is widely acclaimed in the marketplace owing to its precision design and reliable performance. This is basically an alarm system that is used in industrial process control in order to alarm the operators working in a plant. It is an accurate device and is widely known for its durability and cost-effective performance. Having microprocessor-based circuit, the offered 8 Way Alarm Annunciator MP functions exceptionally well. Besides this, our customer can approach us to get the device at a reasonable price.
Product details
|
Input supply range |
18-90V DC, 88-285V AC/DC |
|
Country of Origin |
Made in India |
|
Brand |
ALAN |
|
Number of Output |
4 Window to 48 Window options available |
|
Model Name/Number |
MLD Series Annunciator |
|
Voltage |
Input: 18-90V DC or 88-285V AC/ DC |
|
Size |
Window Sizes: 1. 30 x 30 mm OR 2. 30 x 65 mm |
|
Model Number |
MLD-02 Series |
|
Usage/Application |
Industrial |
| Model Number | 8 WAY |
| Supply Voltage | 18 - 90 VDC or 88 - 285V AC / DC |
| Power Consumption | Less than 0.5W per window |
| Sr No | Description | Col x Row | Bezel Dimensions | Panel Cutout |
| (Height xWidth xDepth) | (Height xWidth) | |||
| 1 | 6 Window | 3Cx2R | 165 x 265 x 115 mm | 135 x 230 |
| 2 | 8 Window | 3Cx3R | 165 x 265 x 115 mm | 13 x 230 |
| 3 | 11 Window | 3Cx4R | 205 x 265 x 115 mm | 175 x 230 |
| 4 | 12 Window | 3Cx4R | 205 x 295 x 115 mm | 175 x 260 |
| 5 | 15 Window | 4Cx4R | 205 x 342 x 115 mm | 175 x 307 |
| 6 | 19 Window | 5Cx4R | 205 x 420 x 115 mm | 175 x 390 |
| 7 | 23 Window | 6Cx4R | 205 x500 x 115 mm | 175 x 467 |
| 8 | 29 Window | 6Cx5R | 235 x 500 x 115 mm | 210 x 467 |
| 9 | 31 Window | 8Cx4R | 205 x 651 x 115 mm | 175 x 621 |
| 10 | 35 Window | 6Cx6R | 285 x 500 x 115 mm | 255 x 467 |

Price:
Minimum Order Quantity : 10 Pieces
Power Supply : 230V AC, 50Hz / 24V DC (customizable as required)
Voltage : 24V DC/AC or 230V AC
Suitable For : Other, Industrial automation, control panels, generator rooms, substations, power plants, process industries
Alarm Light Color : Red, White (for configurable alarm/separate signal differentiation)
Alarm startup time : < 1 second (immediate upon actuation)
Minimum Order Quantity : 10 Pieces
Power Supply : 230V AC (typical for annunciators)
Voltage : 230V AC, 24V DC (common versions)
Suitable For : Other, Control Panels, Industrial Plants, Substations, Automation Systems
Alarm Light Color : Red/White (Indicator Windows)
Alarm startup time : Instantaneous (On Signal Detection)
Minimum Order Quantity : 10 Pieces
Power Supply : 230V AC, 50Hz
Voltage : 230V/110V AC (customizable)
Suitable For : Other, Control Panels, Substations, Industrial Applications
Alarm Light Color : Red (Window Indicators)
Alarm startup time : Instantaneous (on fault input)
