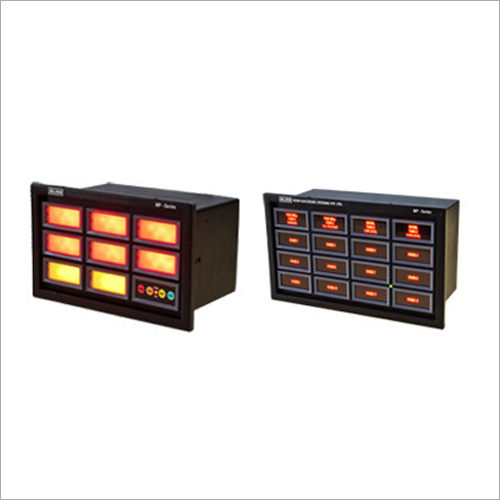

90 VDC MP Alarm Annunciator
90 VDC MP Alarm Annunciator

90 VDC MP Alarm Annunciator

Price 4,500 INR/ Piece

MOQ : 1 Piece

90 VDC MP Alarm Annunciator Specification

  • Usage
  • Industrial
  • Voltage
  • 18-90 Volt (v)
  • Color
  • Black
  • Frequency
  • 50 Hertz (HZ)
  • Product Type
  • Alarm Annunciator
  • Material
  • Mild Steel
  • Warranty
  • 1 year
  • Power Supply
  • Electric


90 VDC MP Alarm Annunciator Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Supply Ability
  • 1 Piece Per Week
  • Delivery Time
  • 10-15 Days


About 90 VDC MP Alarm Annunciator

18 - 90 VDC Alarm Annunciator MP is a modern tool designed for industrial applications. It is typically used in the process control to alarm the operator of alarming conditions in a plant. This is an electronic device having a microprocessor-based control system that is responsible for its reliable functioning and accuracy. The device is well tested for its performance and quality in our advanced quality control division based on certain parameters. For this reason, our offered 18 - 90 VDC Alarm Annunciator MP ensures long service life and zero maintenance cost.

Supply Voltage18 - 90 VDC or 88 - 285VAC / DC
Power ConsumptionLess than 0.5W per window

Silent Feature
  • Micro-controller based logic.
  • Built in watchdog design to ensure fail safe operation.
  • Facial windows with long life super bright white LEDs.
  • Easily replaceable window legends/inscriptions.
Sr NoDescriptionCol x RowBezel DimensionsPanel Cutout
(Height xWidth xDepth) (Height xWidth)
16 Window3Cx2R165 x 265 x 115 mm135 x 230
28 Window3Cx3R165 x 265 x 115 mm13 x 230
311 Window3Cx4R205 x 265 x 115 mm175 x 230
412 Window3Cx4R205 x 295 x 115 mm175 x 260
515 Window4Cx4R205 x 342 x 115 mm175 x 307
619 Window5Cx4R205 x 420 x 115 mm175 x 390
723 Window6Cx4R205 x500 x 115 mm175 x 467
829 Window6Cx5R235 x 500 x 115 mm210 x 467
931 Window8Cx4R205 x 651 x 115 mm175 x 621
1035 Window6Cx6R285 x 500 x 115 mm255 x 467
